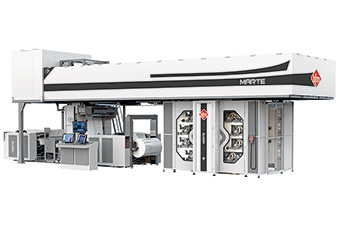

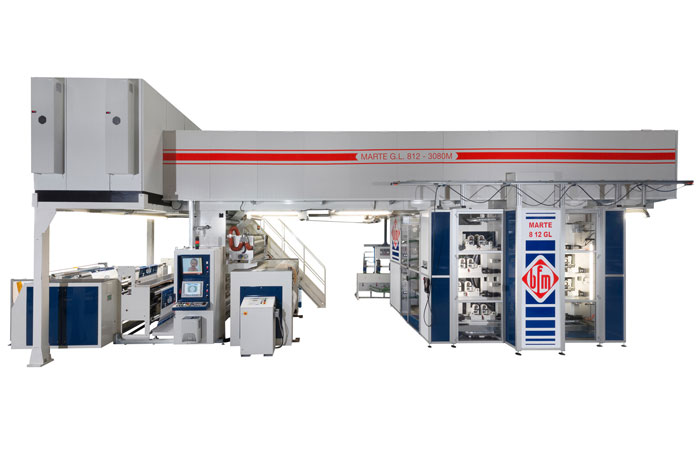

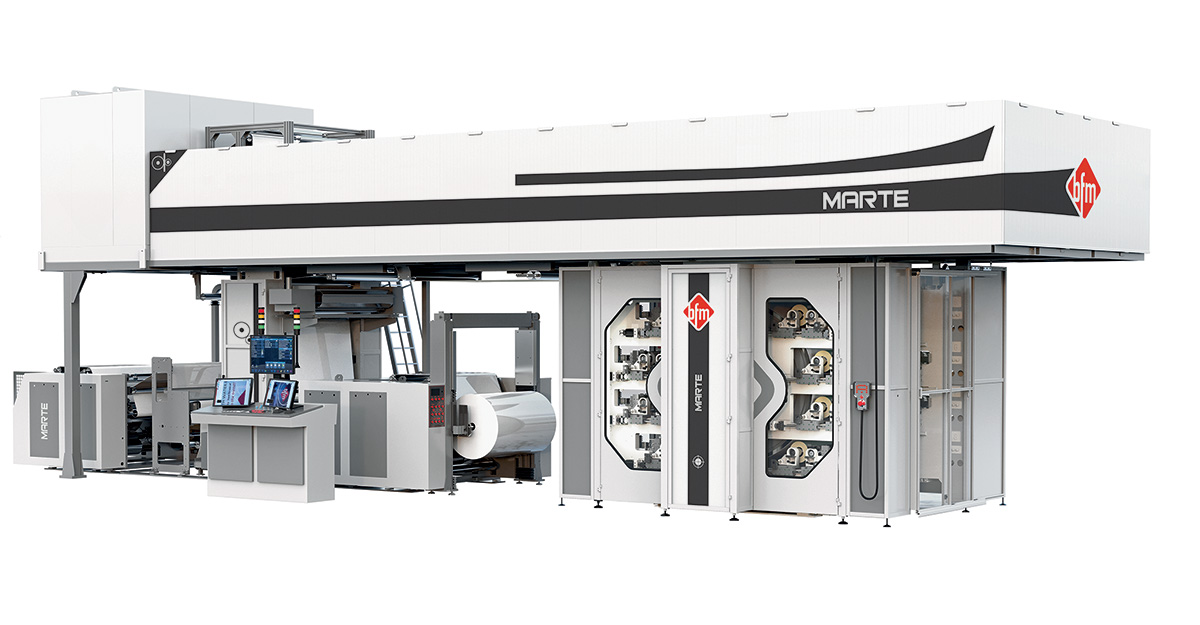

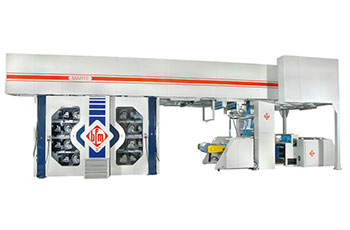

MARTE 8 COLORS GEARLESS

8 colors with motorized printing groups and sleeves change in machine.
The "Marte" is Flexo Printer of high precision with the characteristic of the central drum, that guarantees a good quality of printing even on very thin and elastic materials.
Primarily used for works 8+0, it allows to perform printing of  “four-color process” of high resolution with centesimal precisions of register. It is mainly used for the printing of plastic materials: LDPE, HDPE, BOPP, PP, PVC.

The strong structure, allows to use it also for the printing of paper, with a speed of production up to 350/400mt/min.

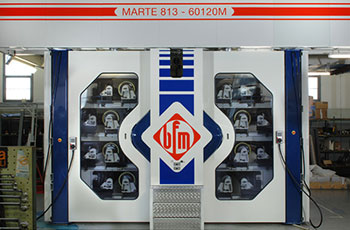

All Models are composed with horizontal printing groups and Doctor Blade chambers completely motorized, that allow to perform all the regulations of the movements, also staying in front of the videocamera of printing

The translation of the anilox and portaclichè cylinders has been realized with brushless motors, steel guides and ballscrew.
Also the longitudinal-transversal registers have been motorized with brushless motors.
All the movements are checked through by the operator with a flying hand control with a precision of 0,01 mms.

Each printing group is driven independently, and it is provided with electronic sequential split rolls at the stop of printing process and electric ink grinding unit. They are provided with pneumatic ink pumps circulation complete with stainless steel tanks.

The employed technical solutions of construction, and the "CANTILEVER SYSTEM" for the change of "SLEEVES" both anilox and portaclichè, have allowed to reduce notably the work changes times
ACCESSORIES AND OPTIONALS

The "Marte" printer is completed as follow:

  • Automatic edge guide before printing stations

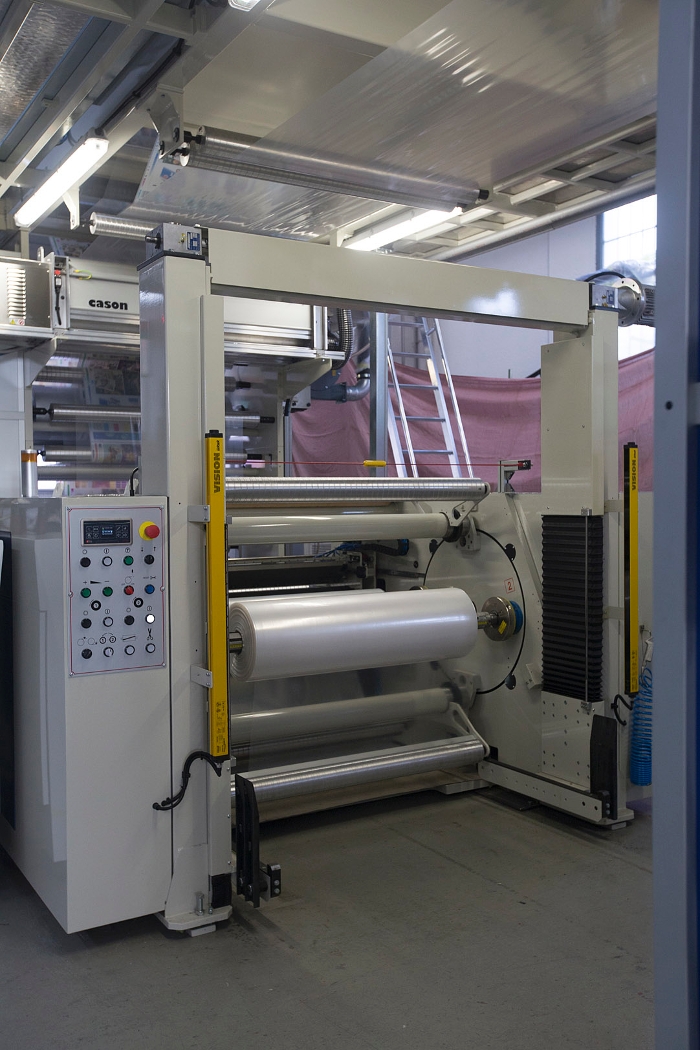

  • Automatic edge guide before re-winding stations
  • Heating system by electric batteries
  • Ink pneumatic pumps

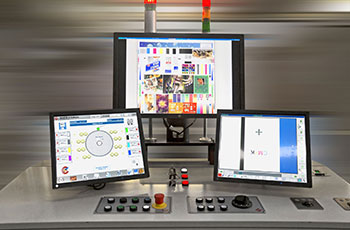

  • Videocamera for printing process control
  • Chiller for temperature control of central drum

The "Marte" printer according to the specific applications, can be provided with the following accessories:

  • Inversion diagonal system (triangle) for 8+8 on 50% of material
  • Inversion diagonal system (triangle) external of the machine - for 4+4 on 100% of material
  • Washing system for ceramic anilox & Doctor blade system
  • Heating system by Gas, Gpl , Diathermic oil
  • Electronic Viscosimeters for solvent

On request possibility of printing repeat lenght from 500 to 1200 mm with Model MARTE PLUS

TECHNICAL DETAILS
TECHNICAL DETAILS
Material passage:
850 mm
Maximum printing width:
800 mm
Minimum printing lenght:
300 mm
Maximum printing repeat lenght:
800 mm
Mechanical speed max:
350/400 m/min
TECHNICAL DETAILS
Material passage:
1050 mm
Maximum printing width:
1000 mm
Minimum printing lenght:
300 mm
Maximum printing repeat lenght:
800 mm
Mechanical speed max:
350/400 m/min
TECHNICAL DETAILS
Material passage:
1250 mm
Maximum printing width:
1200 mm
Minimum printing lenght:
350 mm
Maximum printing repeat lenght:
800 mm
Mechanical speed max:
350/400 m/min
TECHNICAL DETAILS
Material passage:
1450 mm
Maximum printing width:
1400 mm
Minimum printing lenght:
400 mm
Maximum printing repeat lenght:
800 mm
Mechanical speed max:
350/400 m/min
